Ultimate Workbench Woodworking Plans - Digital Download
Rated 4.9 / 5 · 42 reviews
One-time purchase · Yours to keep
- Instant download. Start planning your build minutes after checkout.
- Step-by-step, in build order. Clear diagrams and measurements, so there's no guessing at the saw.
- Print it or pin it. Print the PDF, or keep it open on a phone, tablet or laptop in the shop.
- Designed for real garage shops. Approachable projects from the Shop Nation YouTube channel.
4.9
Avg. from 42 builders
Instant digital download
$0
Shipping. Ever.
1×
Buy once, build forever
About the build
A smarter shop starts with a better plan

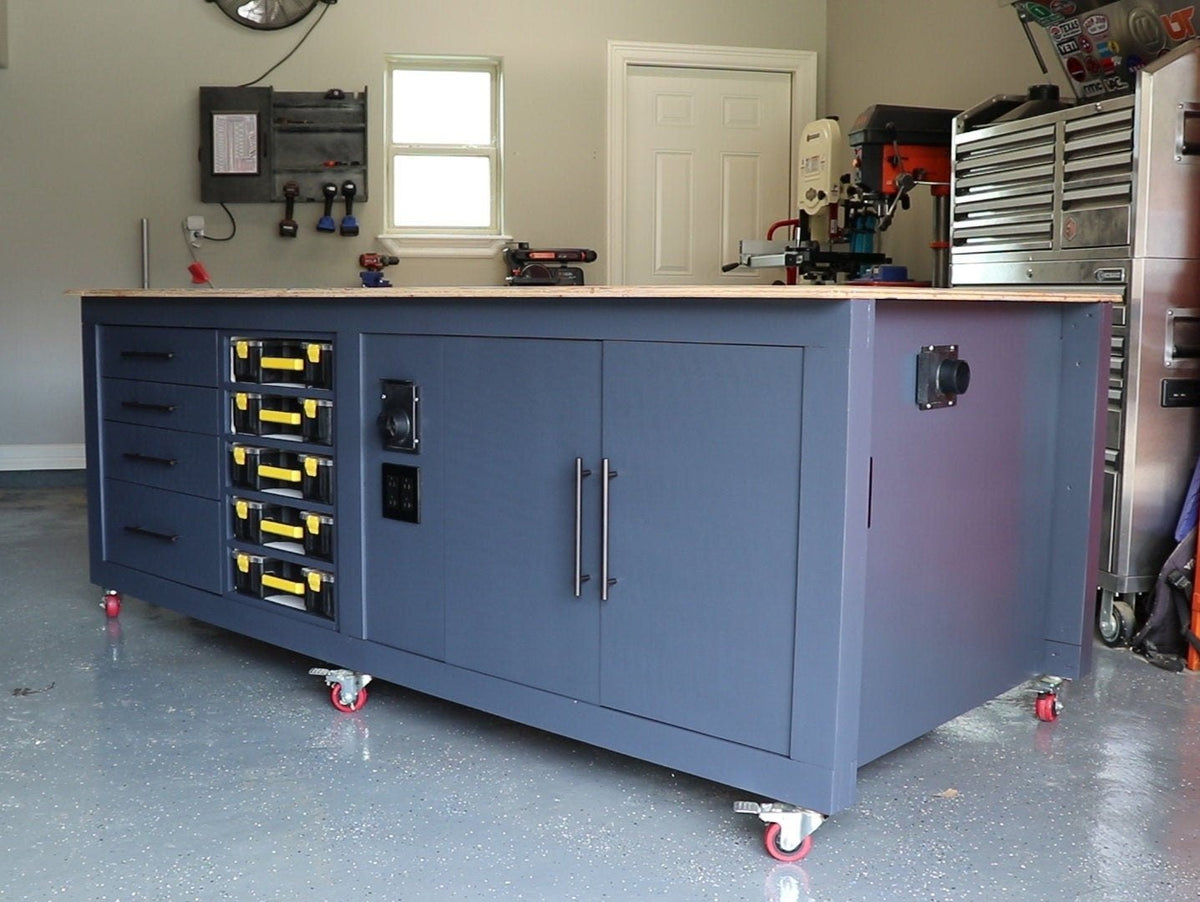

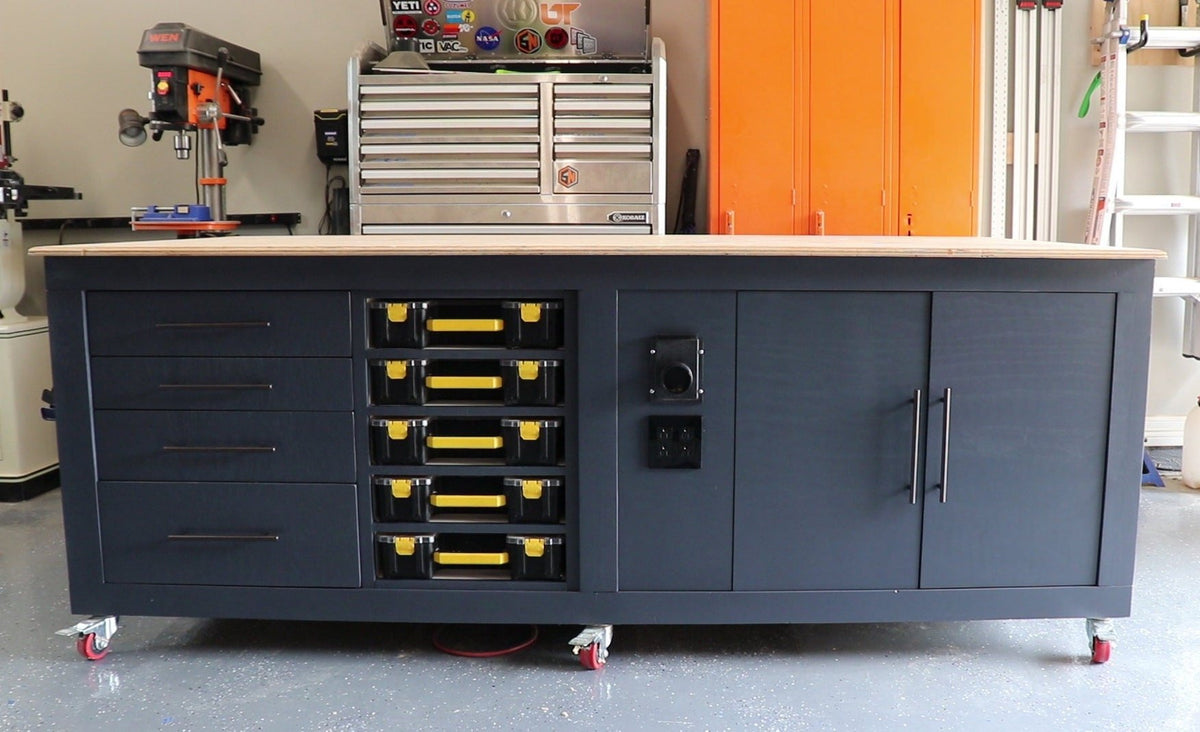

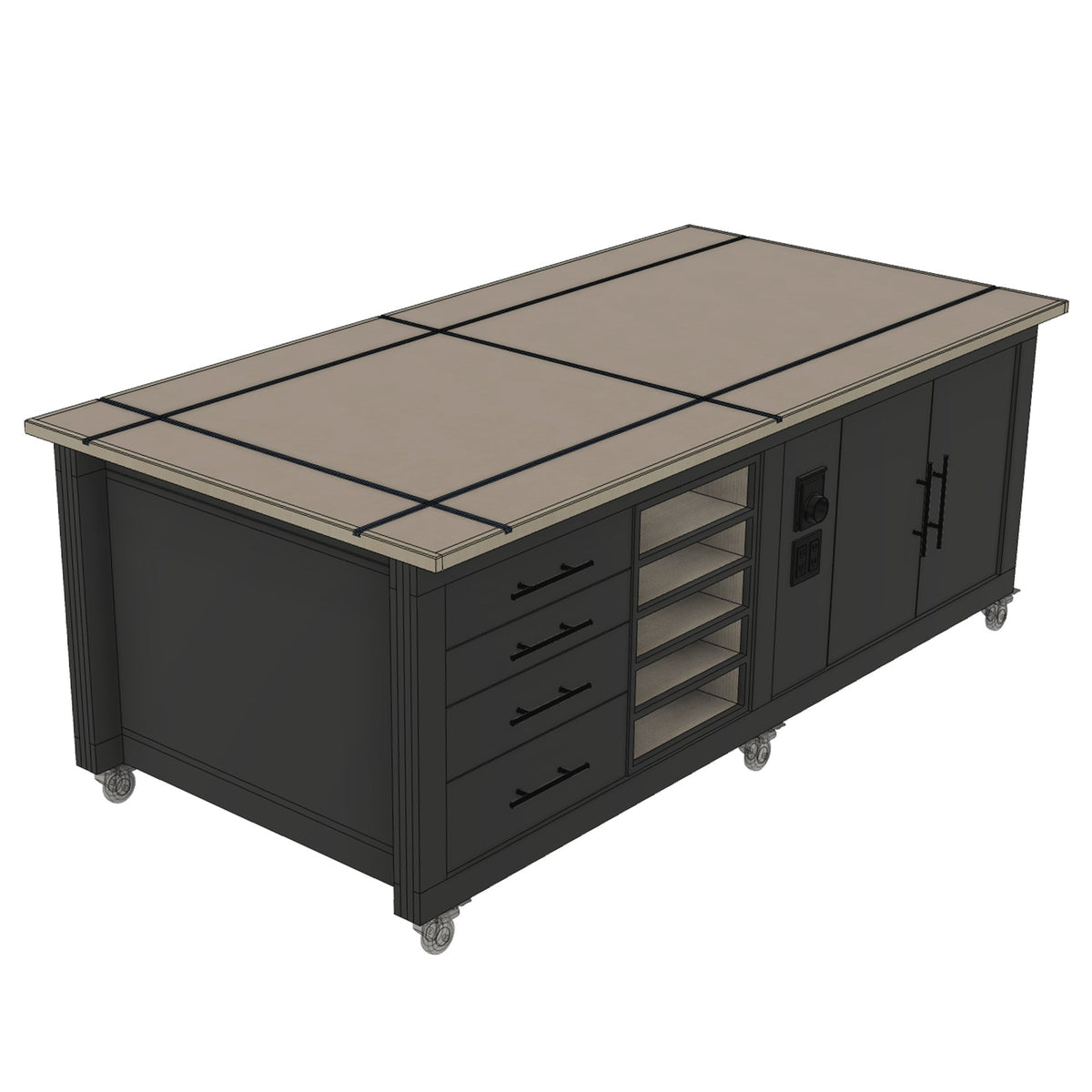

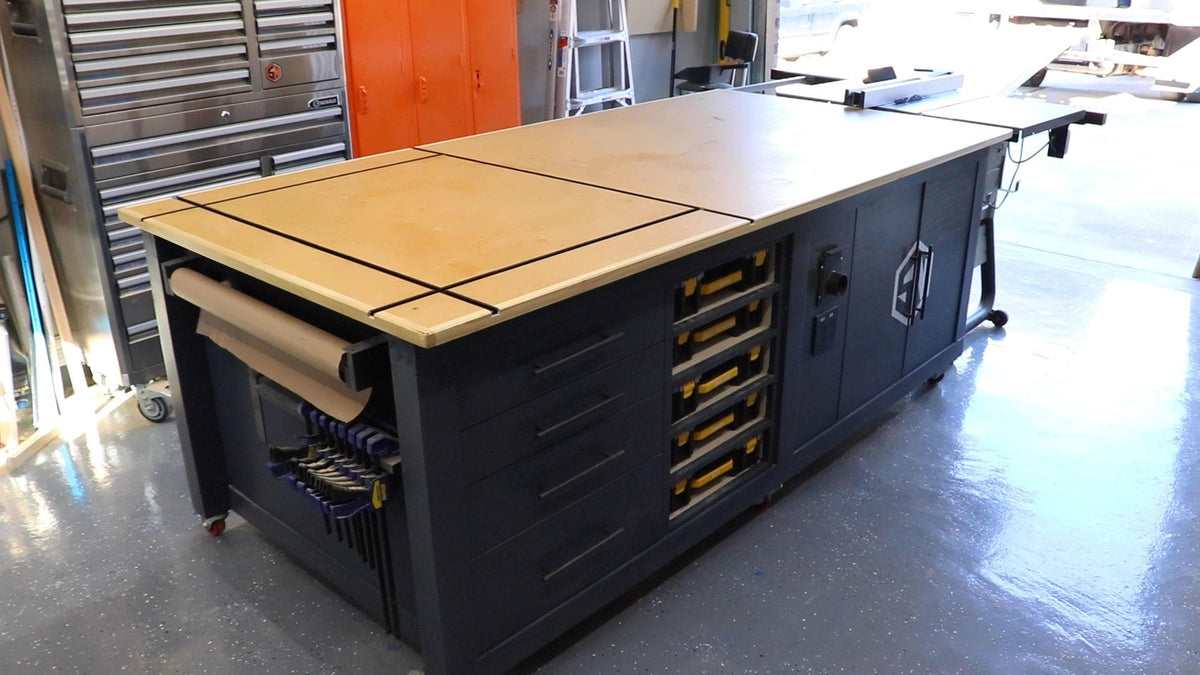

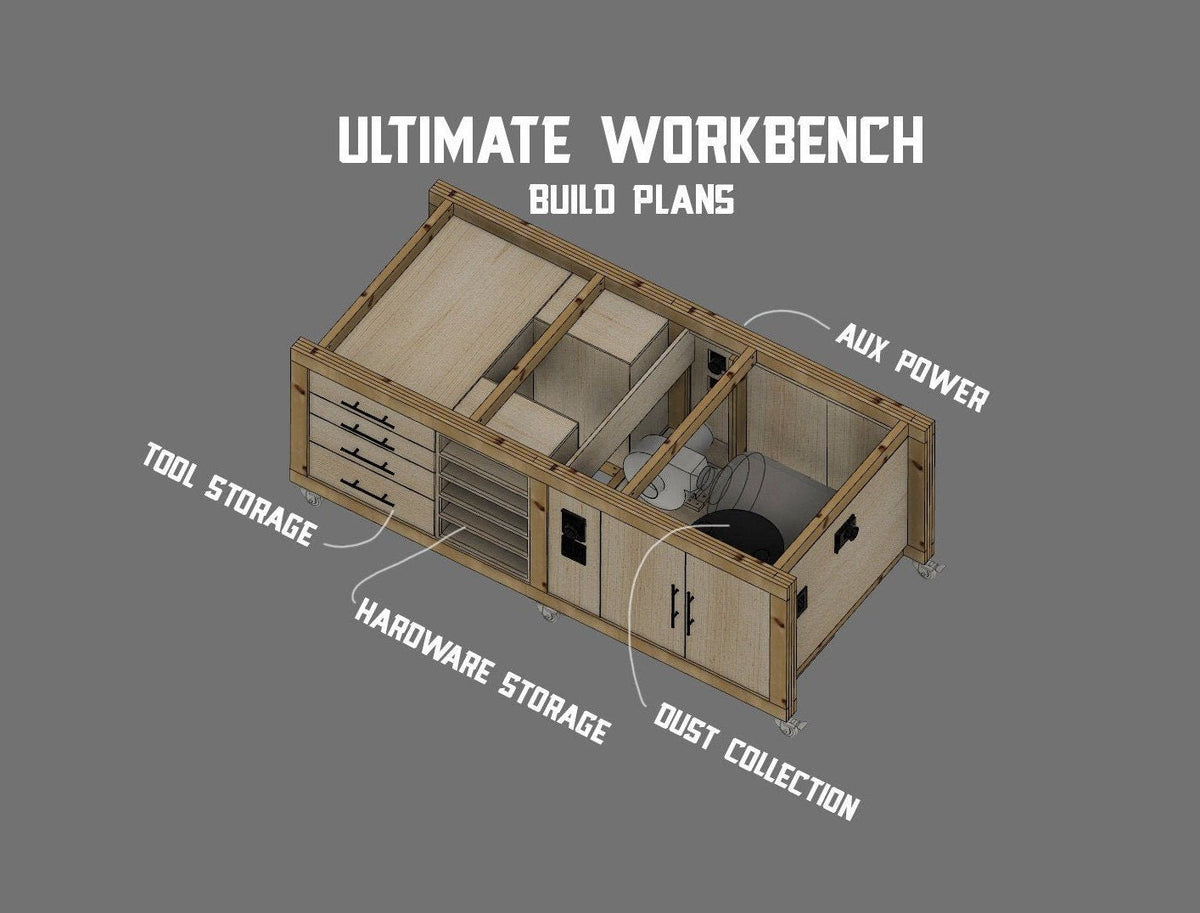

This is a digital download (PDF) of the complete plans for what I call the "ultimate workbench." This essential piece of shop furniture for any small/compact workshop will surely add functionality and efficiency to your space. The plans are 70+ pages long and provide full-color, step by step instructions to build a complete workbench with the following features:

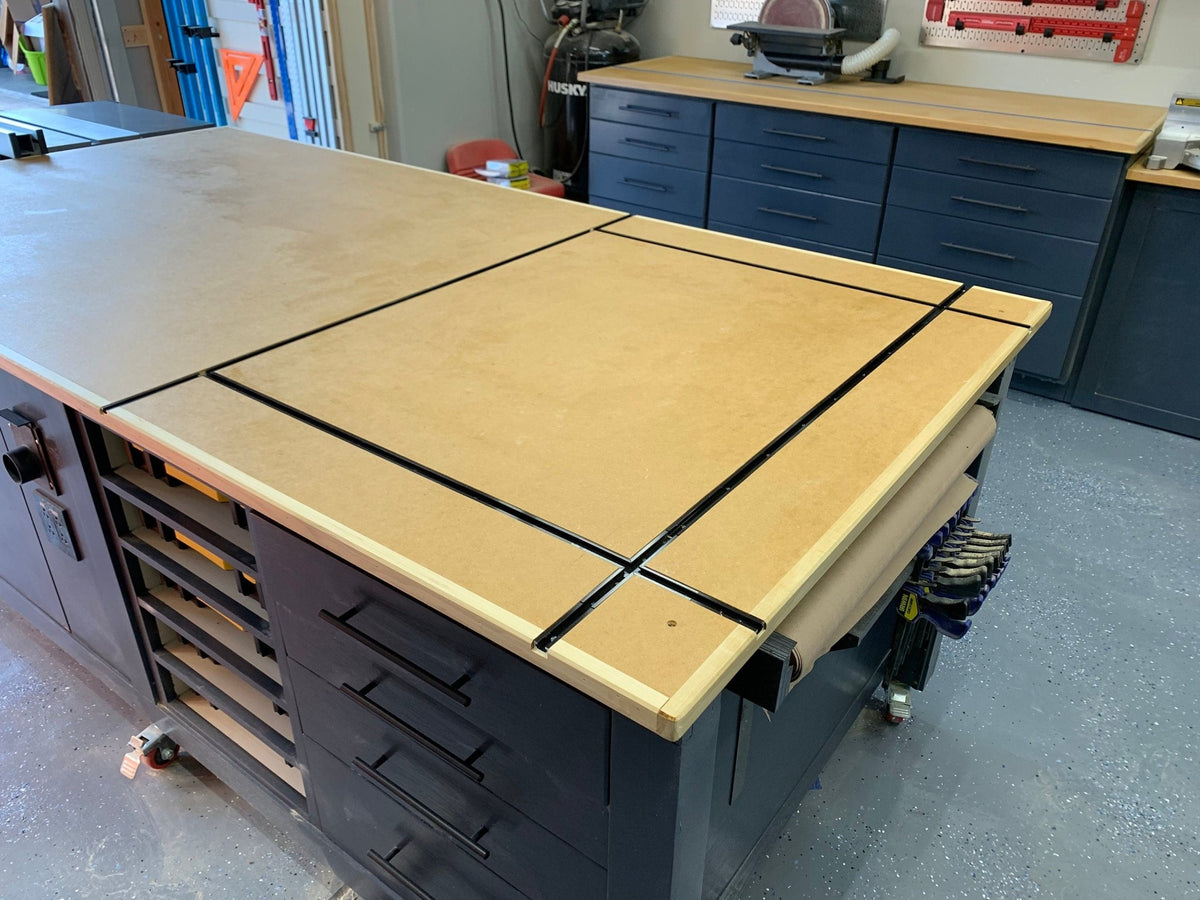

- Huge 4'x8' work surface with T-Track

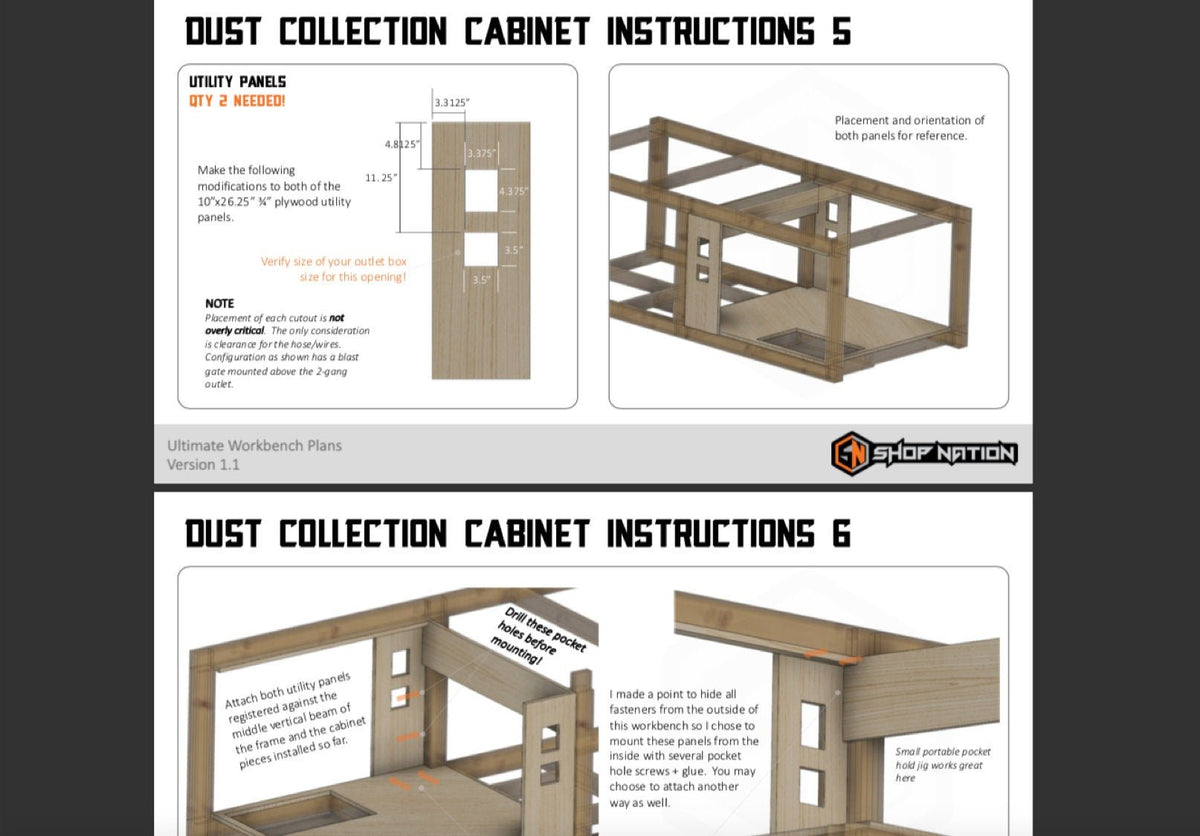

- Integrated dust collection system (with automatic switch)
- Integrated power outlets for easy access while working

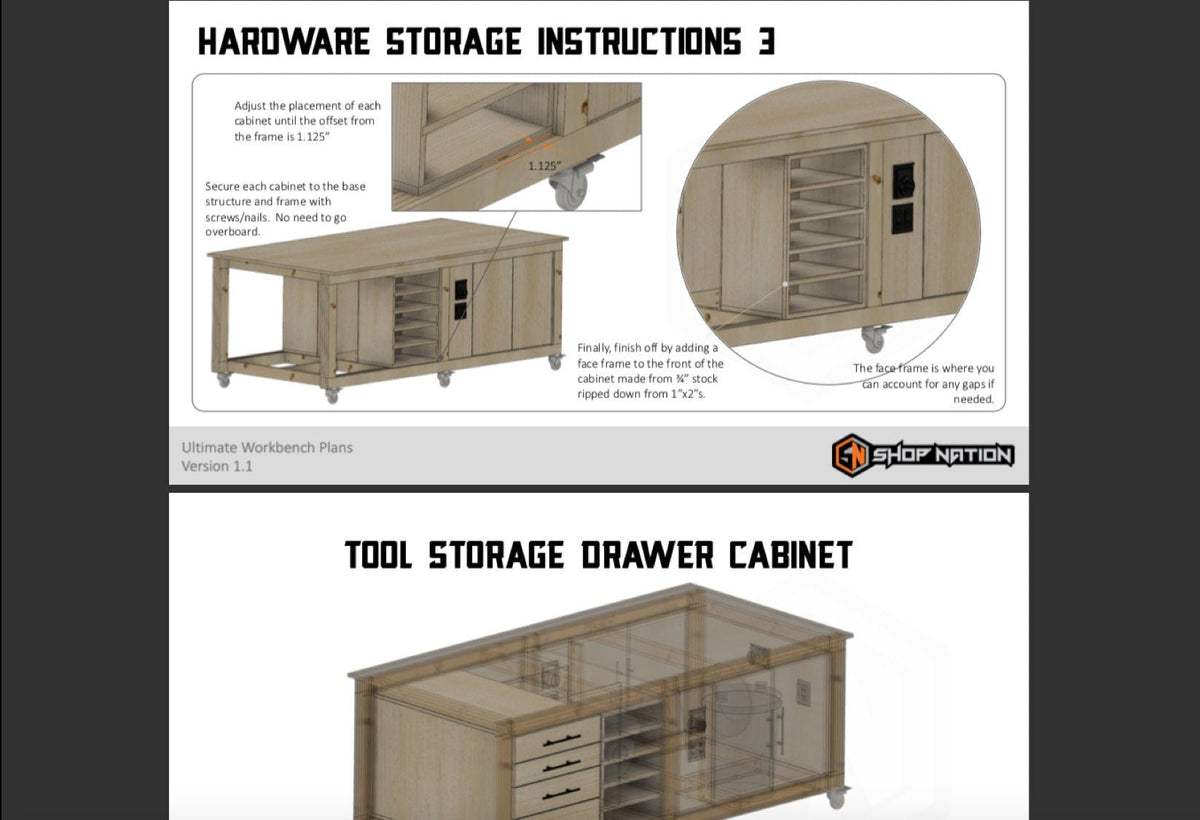

- Hardware organization to house bin organizers for hardware and small parts
- Tool storage drawers
- Locking swivel casters for mobility
These plans are broken down by "sub-process" so that this workbench can be tackled in bite-sized pieces. I detailed the construction of my ultimate workbench on my YouTube channel "Shop Nation"
Link to workbench build playlist HERE
Approximate Final Size:
96" Long, 48" Wide, 37" Tall

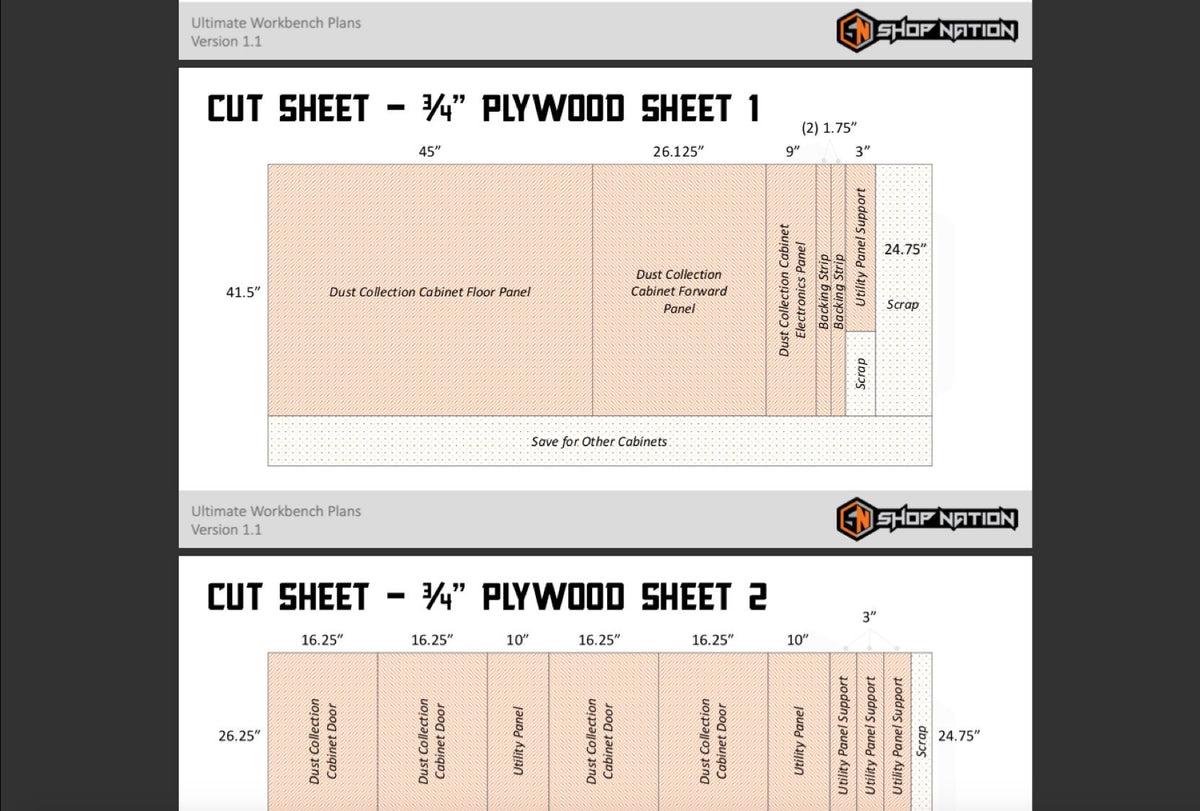

Rough breakdown of materials and cost required:
Wood:
4.5 - 3/4" plywood sheets
1 - 3/4" MDF Sheet
1.5 - 1/2" plywood sheets
0.5 - 1/4" plywood sheets
6 - 2x4s
24 - 1x4s
2 - 1x2s
--------------------------------------------------------------
Total estimated cost of wood ONLY: $420
Total estimated cost of hardware ONLY: $230
Total estimated cost of Dust Collection/Electrical System ONLY: $740
You can see that by breaking down the build you can spread out these costs pretty easily.
