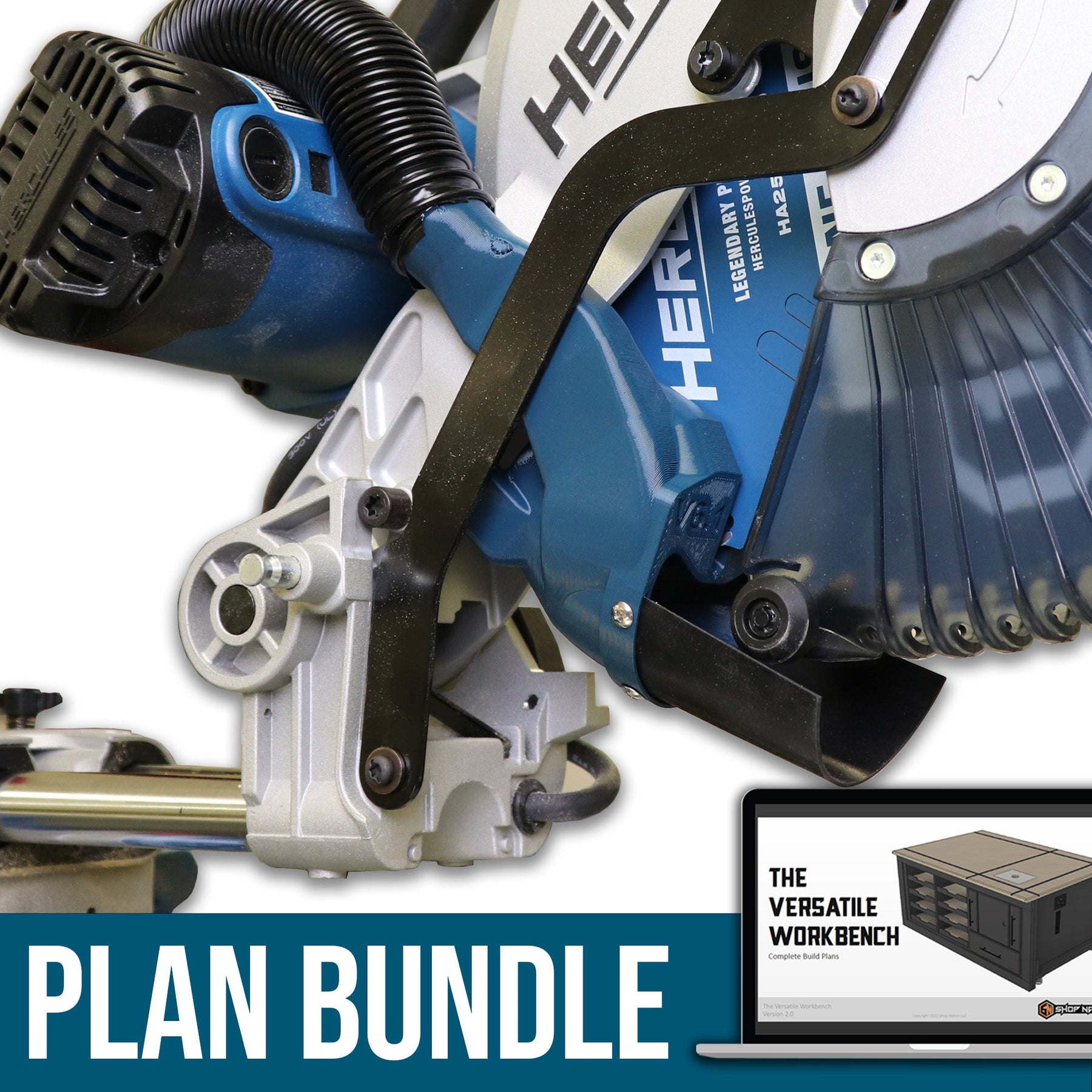

Hercules 12" Sliding Compound Miter Saw Dust Collection & Plans Bundle

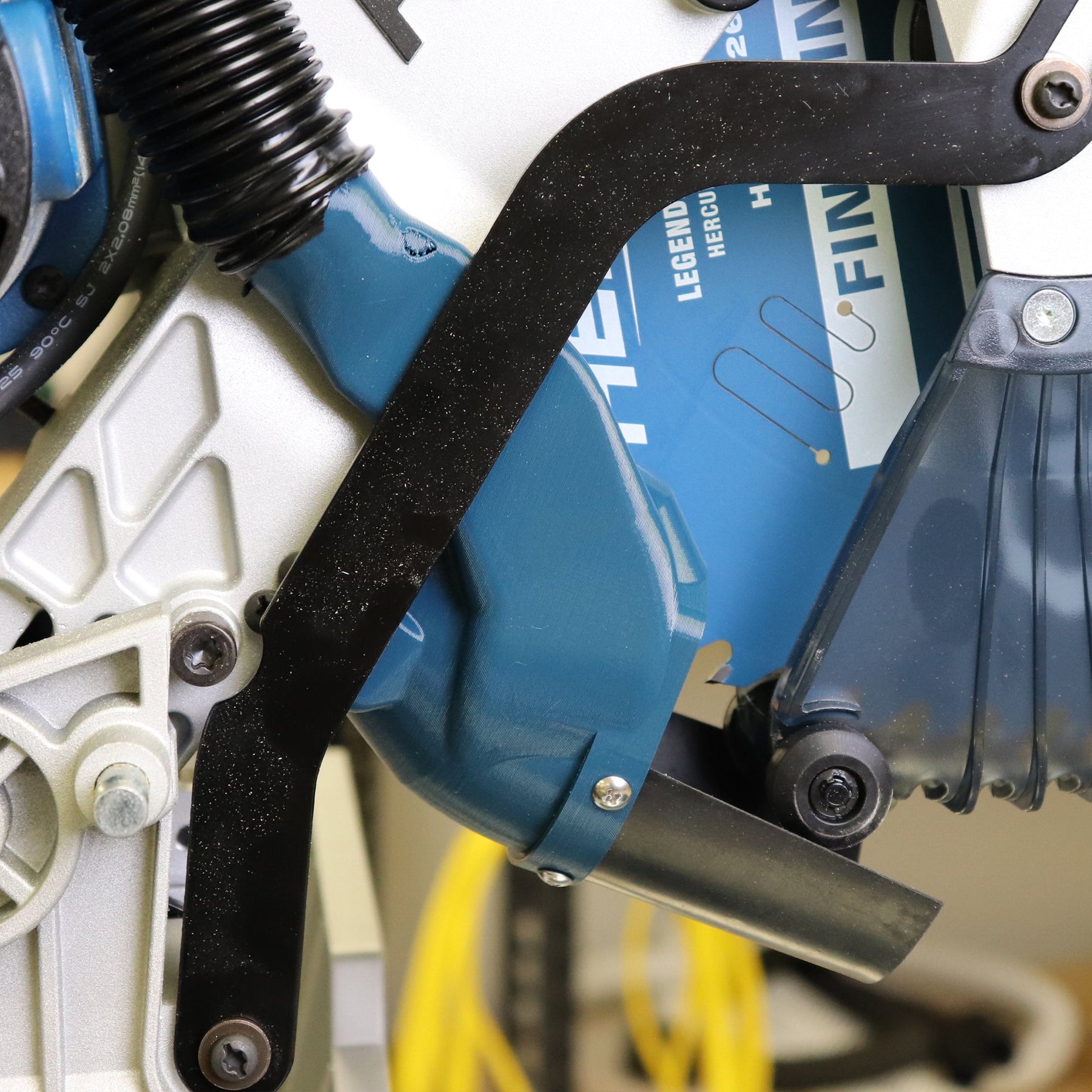

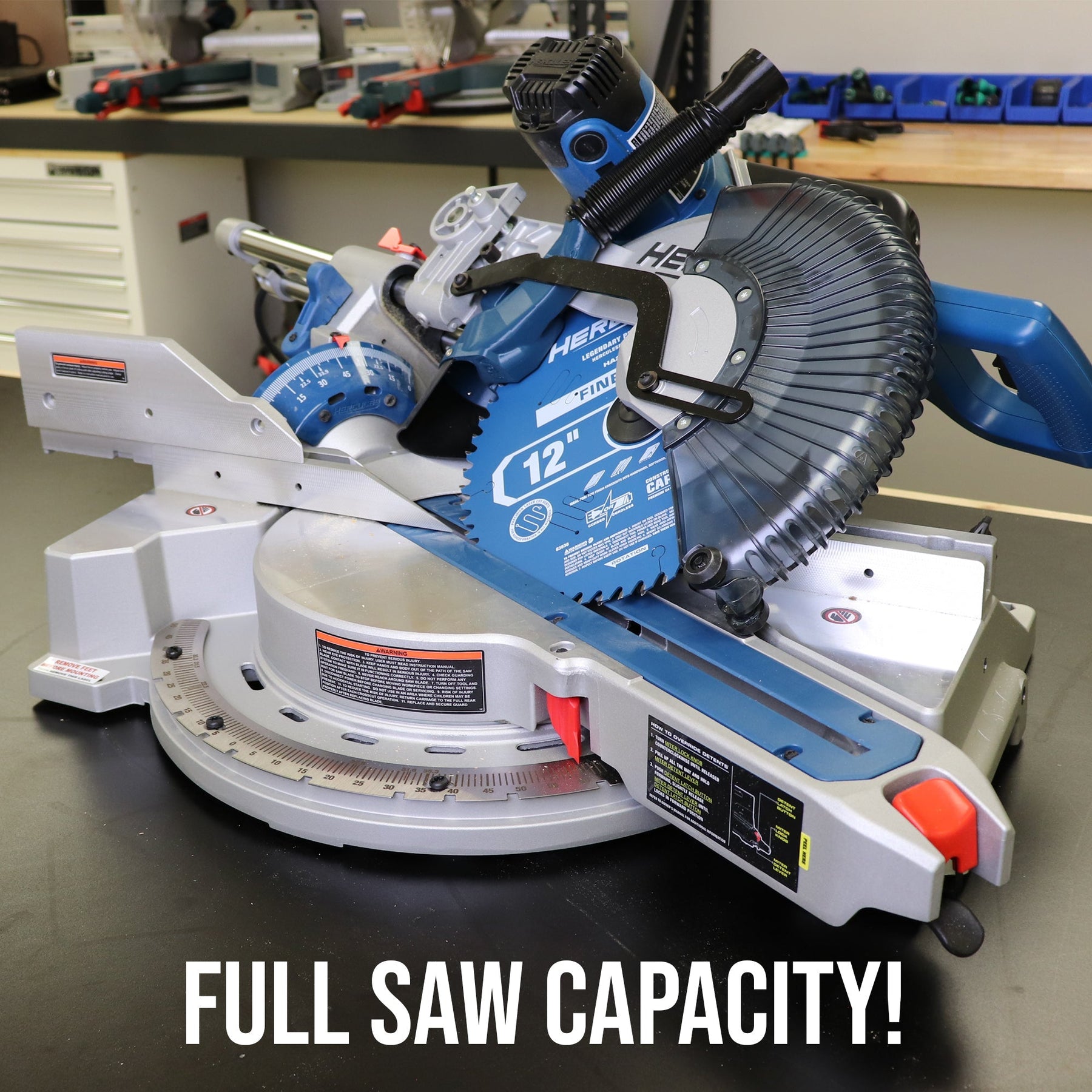

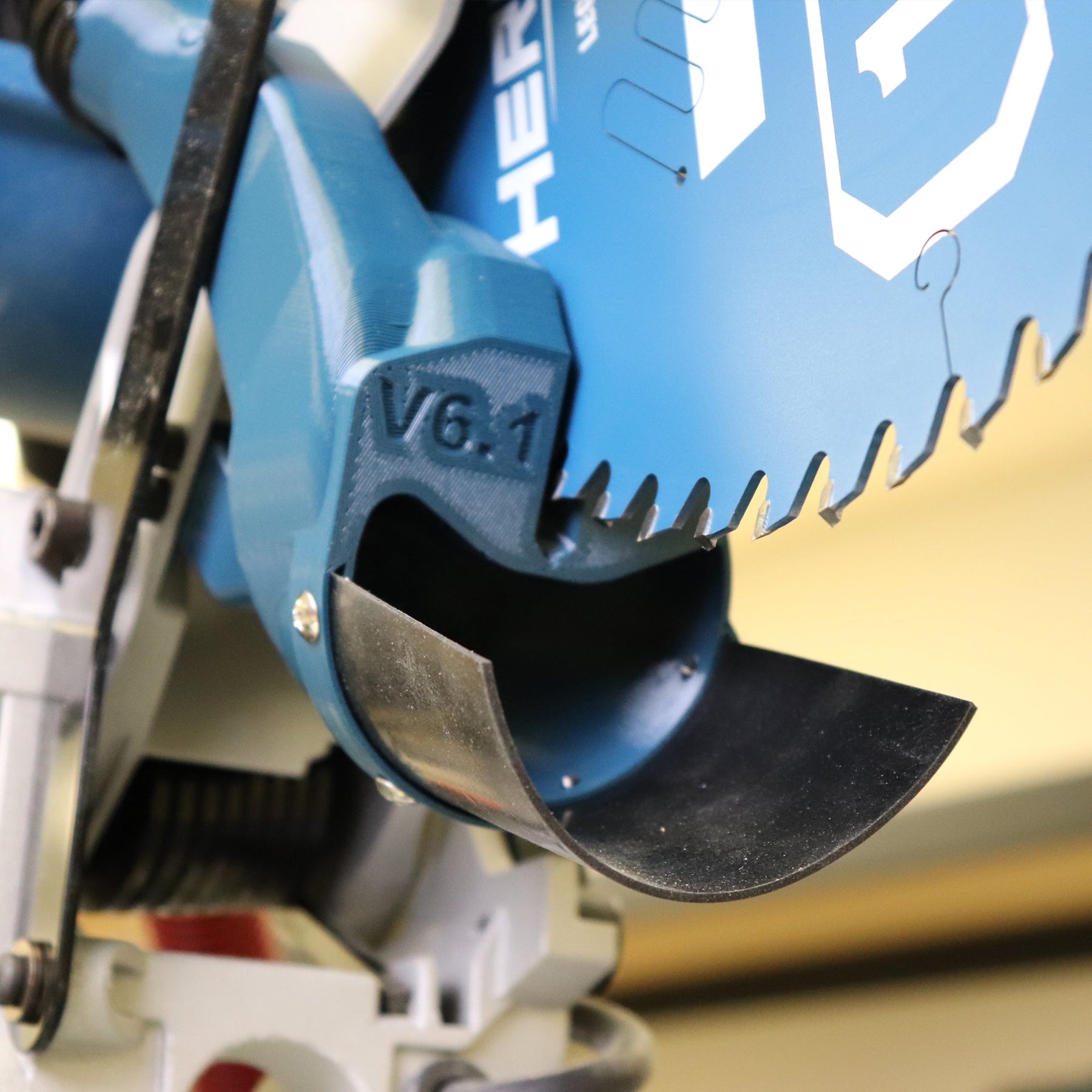

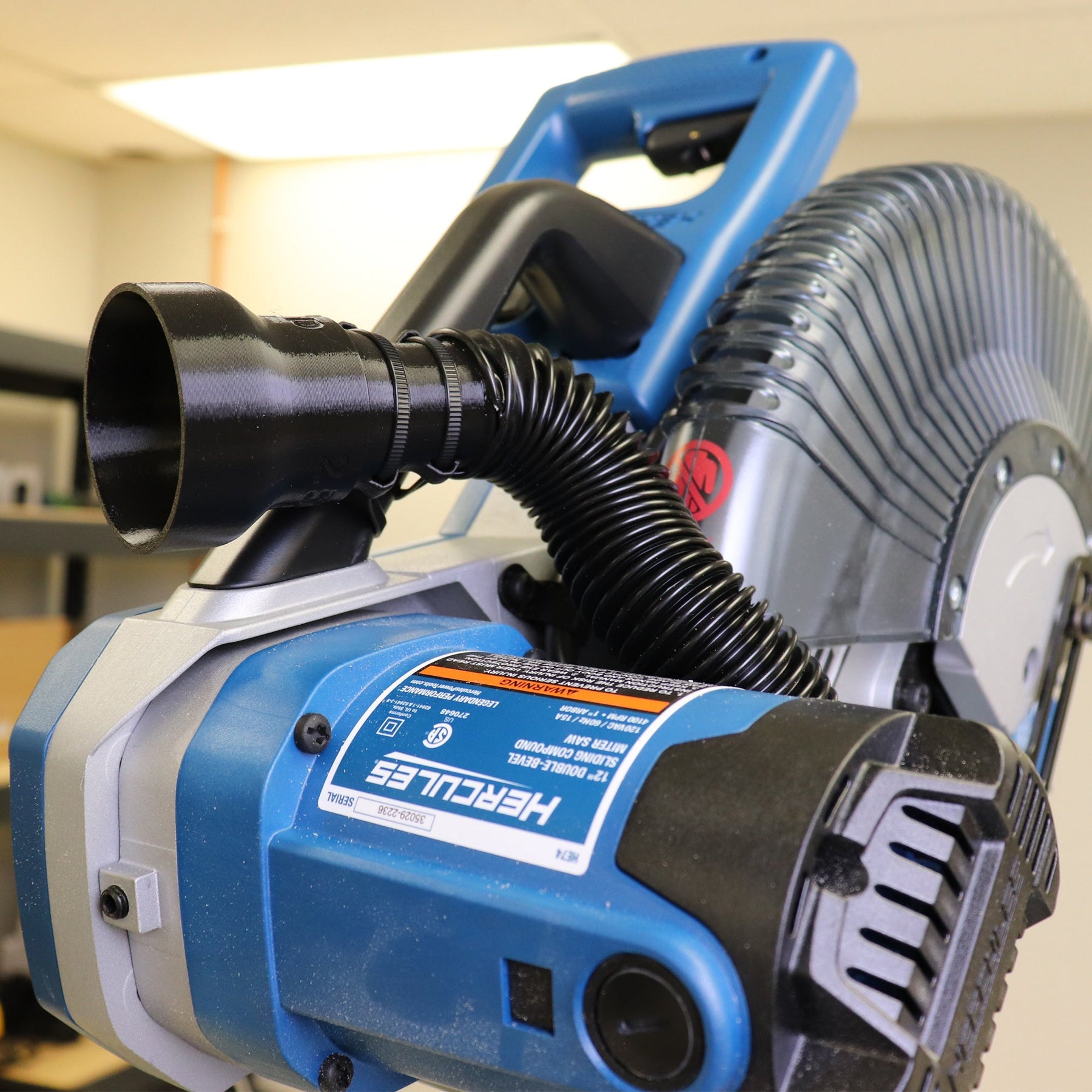

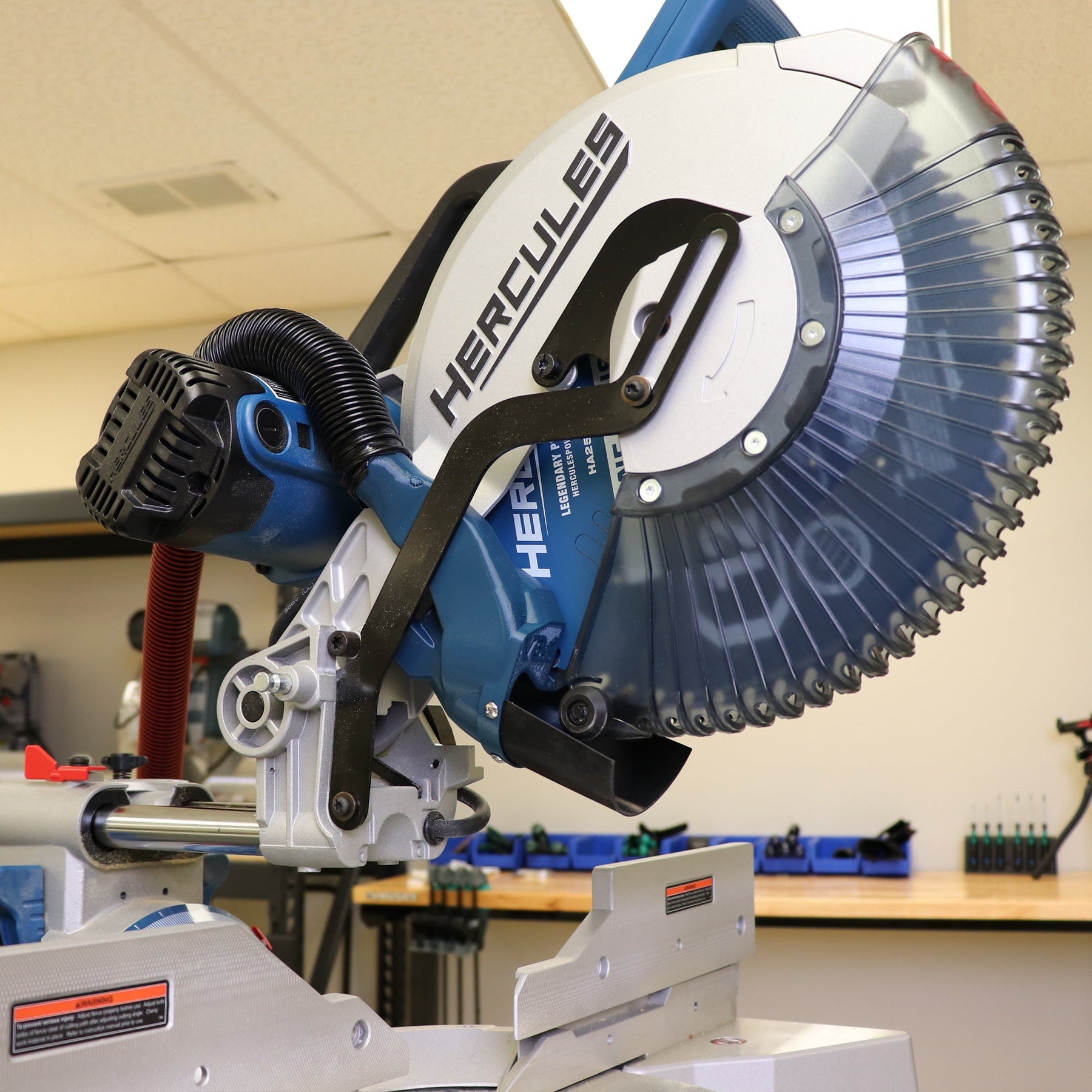

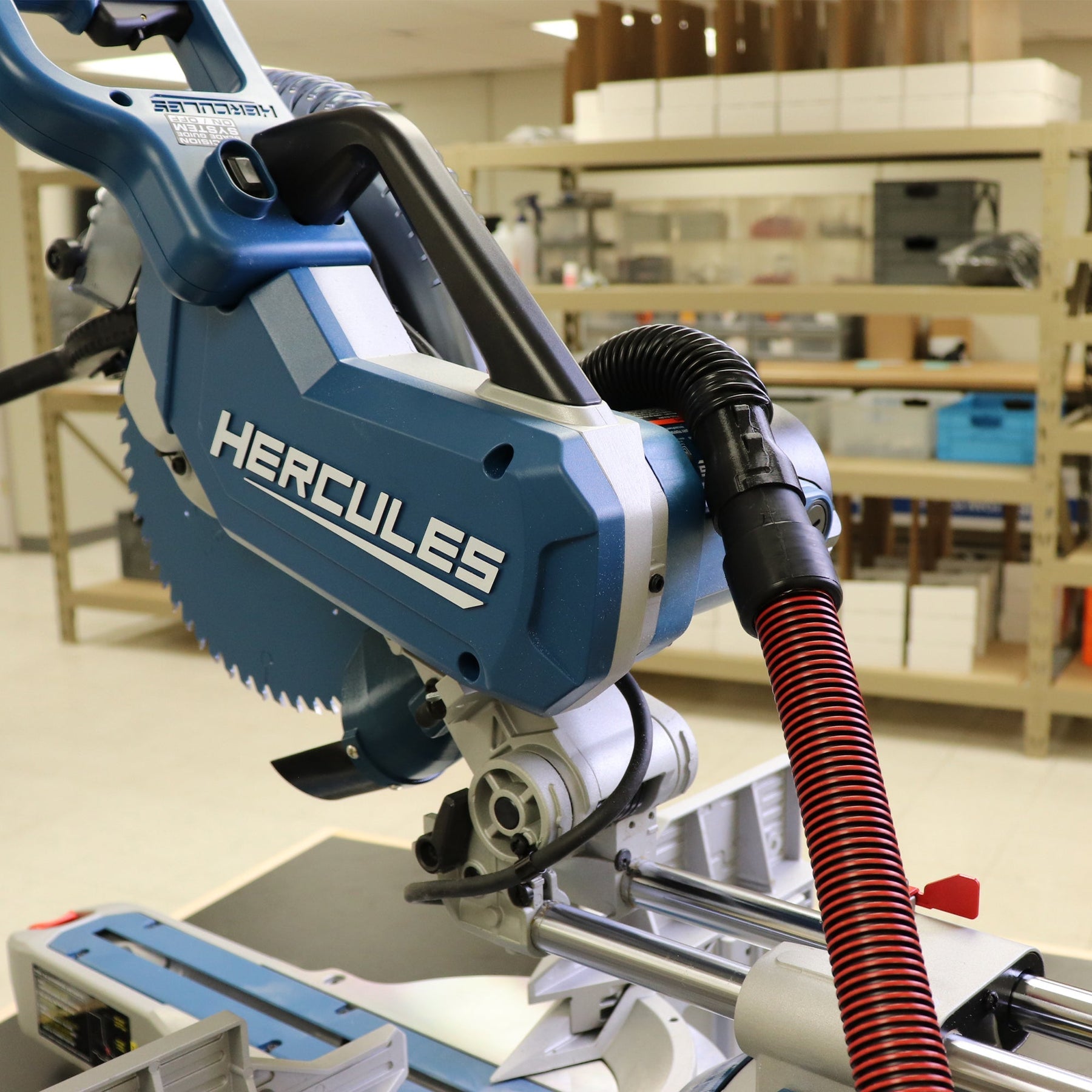

Finally a solution that replaces the terrible dust collection attachment on your Hercules 12" HE74 Compound Sliding Miter Saw! You will see a HUGE improvement in dust collection efficiency with this upgrade - all without losing ANY effective saw capacity! This chute is printed in a blue color (close to the Hercules Blue) high strength PETG plastic with black PETG accessories.
NOTE: This solution is designed SPECIFICALLY for the HE74 model number. There is no guarantee that this will fit any other saw.
Everything you need is Included:
(1) Dust Collection Chute Body (Hercules Blue)
(1) Expanding Hose Section
(2) Flexible rubber flap

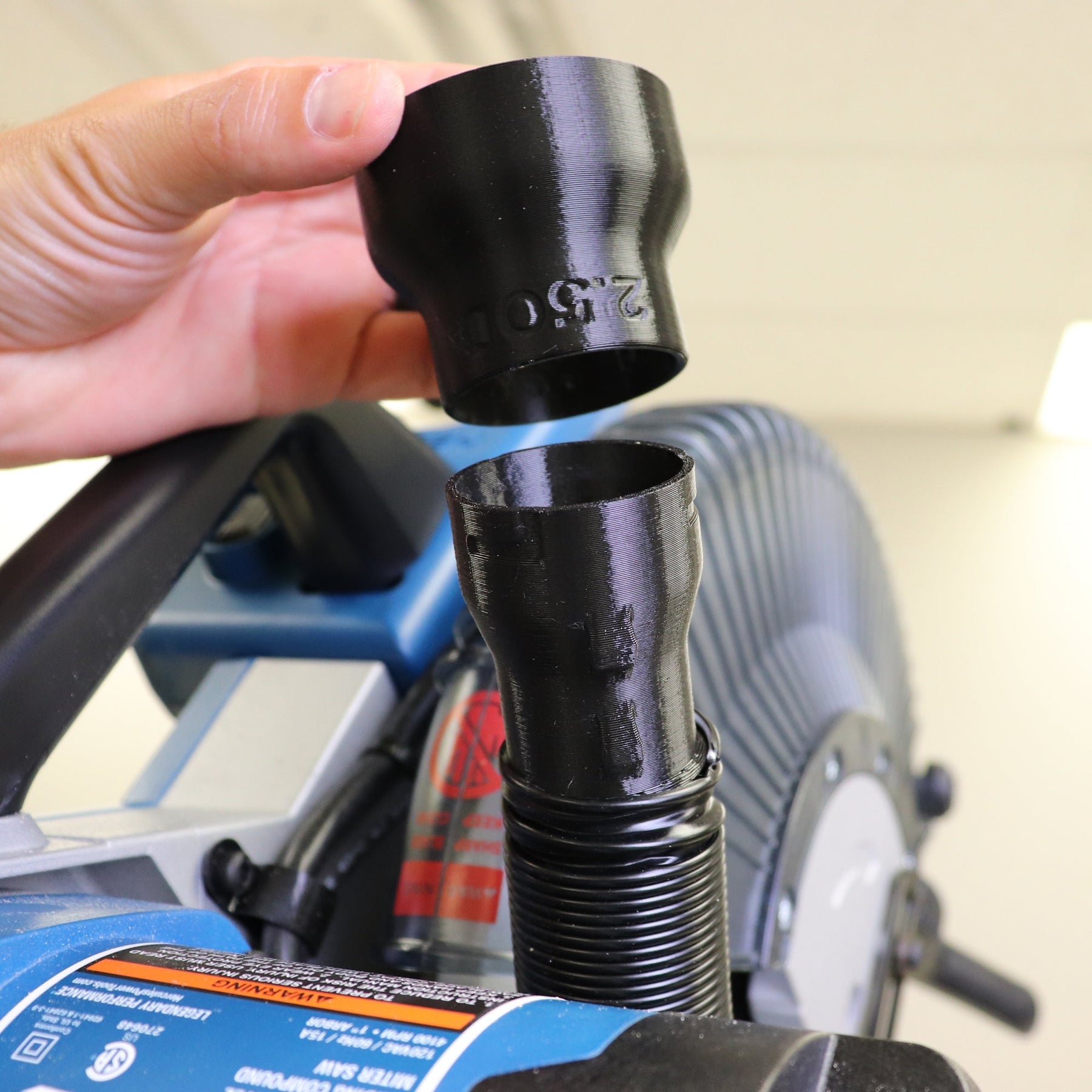

(1) Hose Transition Piece (with optional adapters if ordered)
(2) Hose Adapters (Large & Medium sizes shown in the table below)
(4) Small phillips screws for attaching flap to the chute body
(1) Install Card with QR Code for complete installation video
Hose Adapter Size Chart:
| Fitting Sizes | OD |
ID |
Works with |
| Hose Transition | 1.625" (41.2mm) | 1.4" (35.5mm) | Small extractor hoses, Festool D27 |
| Medium Adapter | 2.00" (50.8mm) | 1.75" (44.5mm) | Common adapters, Festool D36 |
| Large Adapter | 2.45" (62.2mm) | 2.25" (57.1mm) | Shop Vac, 2.5" Dust Collection Hose |
PLUS! In this package you will get a digital download of EVERY SINGLE PLAN listed below:
Ultimate Shop Cabinet System
Miter Station Cabinet
Versatile Workbench (Imperial & metric)
Ultimate Workbench
Shmedium Workbench
Mega Table Saw Workbench
Jobsite Table Saw Workbench
Compact Kreg ACS Workstation (workbench)
Swinging Tool Wall Storage
Disc/Belt Sander Wall Organizer
Sanding Cabinet Wall Organizer
Adjustable Hanging Tool Storage
Workshop Towel/Rag Wall Organizer
Drill Press Table (w/ dust collection)
Compact Wood Storage Cart
Camphouse Shed
Kid Workbench
Each Plan Includes:
- Full Cut Sheets & Cut List [Note: all plans in imperial (in.) unless specified]
- Full Materials List
- Broken down build sections into bite-sized chunks
Blade changes: To change your blade you will need to loosen the (2) mounting screws to allow enough wiggle room to get the blade off. This minor inconvenience was a necessary evil to keep safety and dust collection efficiency as high as possible!
